In GraphQL, a mutation is something that changes data. Whether you’re creating, updating, or deleting, running a mutation will always cause data to be modified. Let’s jump into how mutations work.


Mutations in the Sonar API are always named for what they do, and written in camelCase. Here, I’m looking at the createAccountStatus mutation in GraphiQL.

Image for post

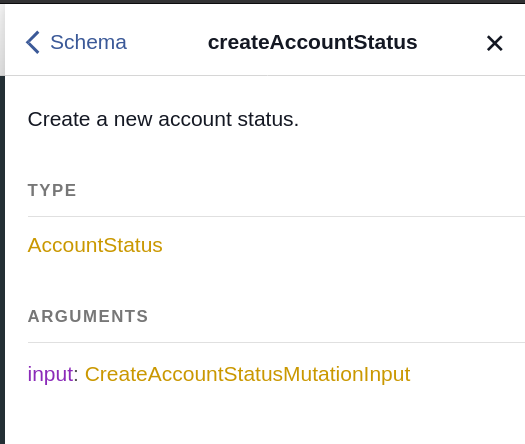

Mutations tend to (generally) be pretty simple in Sonar. They take an input object, and return the object that you’re affecting. In this case, the mutation takes a CreateAccountStatusMutationInput object and returns an AccountStatus entity.

Image for post

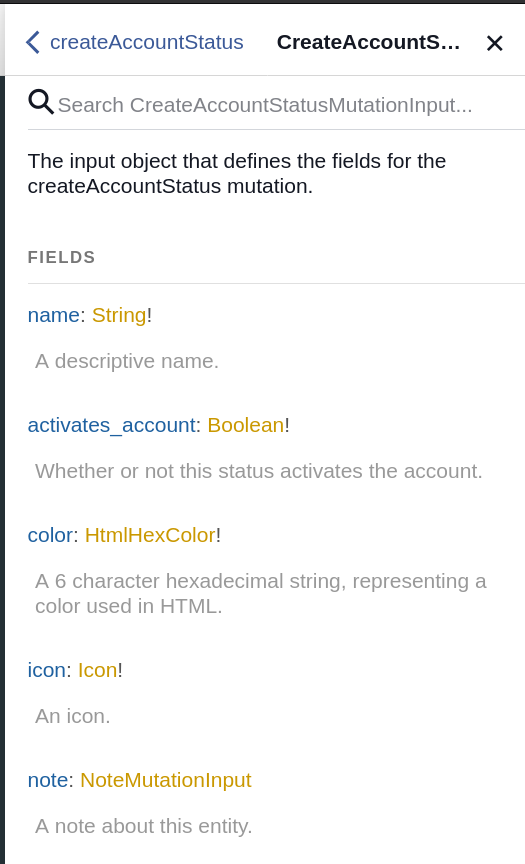

The CreateAccountStatusMutationInput object has a number of properties that can be input. Remember, anything ending in a ! is required, and properties that don’t end in a ! are not, so in this case, you must input name, activates_account, color and icon. Let’s start building up this mutation!

Image for post

This should look pretty familiar if you’ve been following the series. I made a mutation called MyCoolMutation and input a variable to it called $input, which is then submitted into the createAccountStatus mutation. Because this mutation returns an AccountType object, I can request any fields from that object that I want back inside the mutation — in this case, I asked for id, name and created_at.

Down in the variables section, I’ve built up my input object with the fields that are required by the mutation. name and activates_account are pretty self explanatory. color and icon are represented by two types of properties we haven’t talked about yet — a scalar, and an enum, or enumeration type.

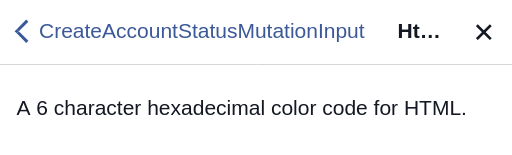

A scalar is a type of input that has to be in a specific format, and validation is applied against it. In fact, every input in Sonar is a scalar — a string is a scalar input, where the validation check is that the input is a string. A float is a scalar input, where the validation check is that the input is a decimal, or floating point number. In this case, the color property is a type of scalar called HtmlHexColor. You can click on the scalar definition in the documentation to see a description of what it requires.

Image for post

Pretty simple — especially if you know HTML. If you don’t, I often like to use www.flatuicolors.com as a way to grab some pleasing colors. In this example, I’m going to use c23616, which is described on www.flatuicolors.com as Harley Davidson Orange.

Image for post

Now onto the icon! The icon is an enum named Icon. An enum is a string with a list of valid options. In this case, the valid options are names of icons available in Sonar. Again, we can click on Icon to see our options.

Image for post

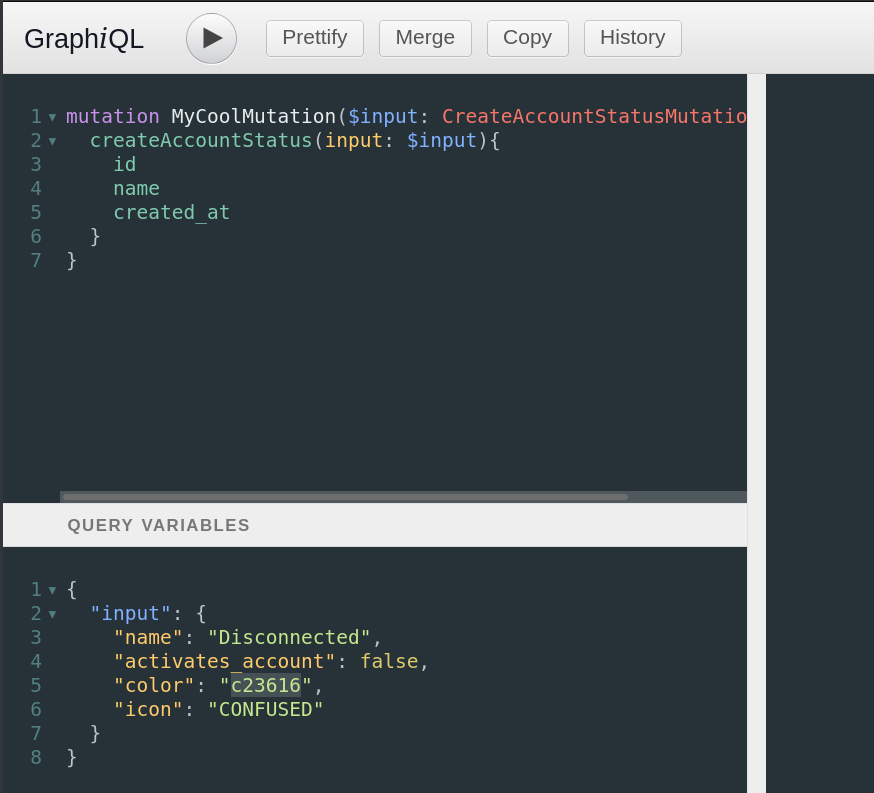

In my case, I’m going to pick CONFUSED. Let’s get this mutation built!

Image for post

Now I’ll submit it, and see what we get back.

Image for post

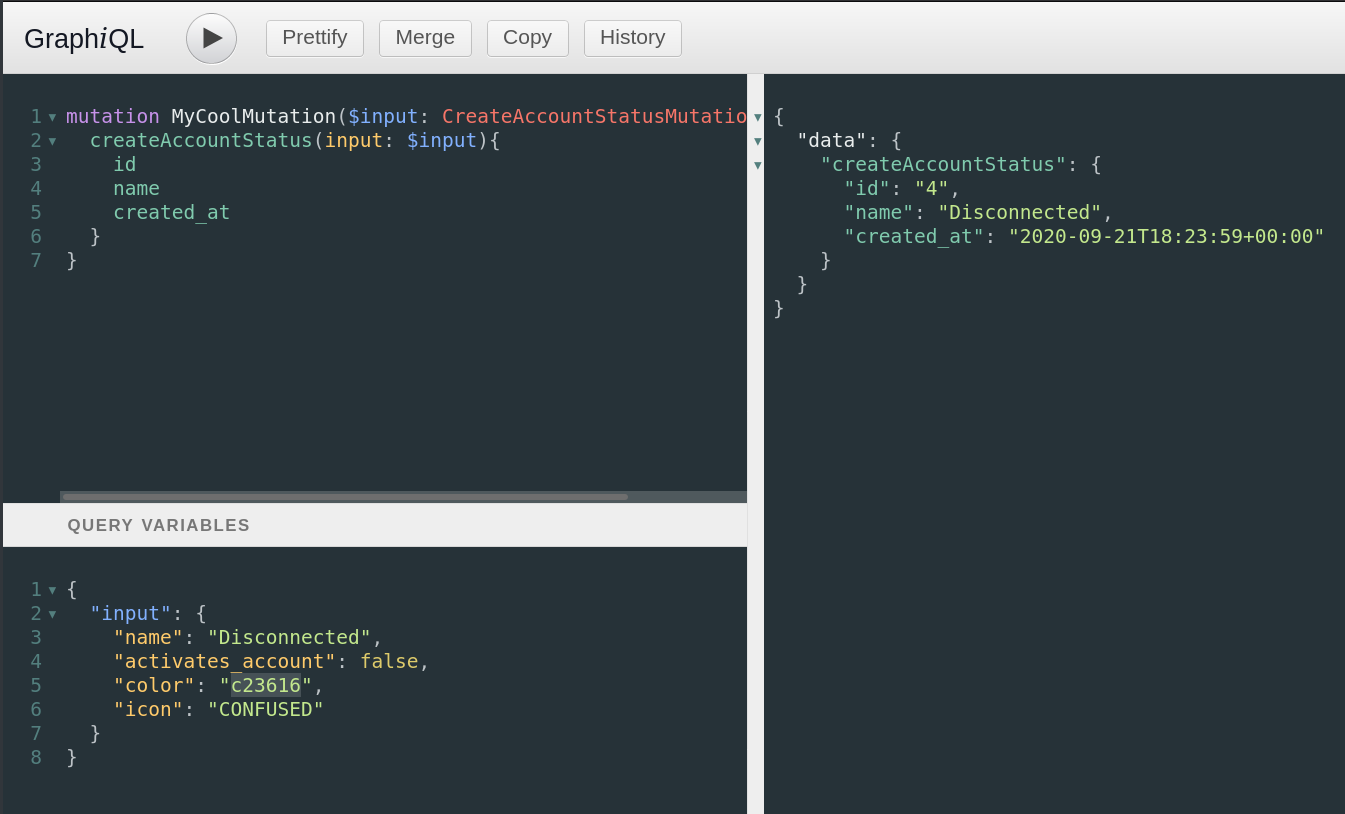

Mutations always return a standard format — the property data for the data being returned, the name of the mutation as a property within that, and then whatever fields I’ve requested inside that. Since I requested id, name and created_at, that’s what I got. Now let’s see what happens if I submit it again.

Image for post

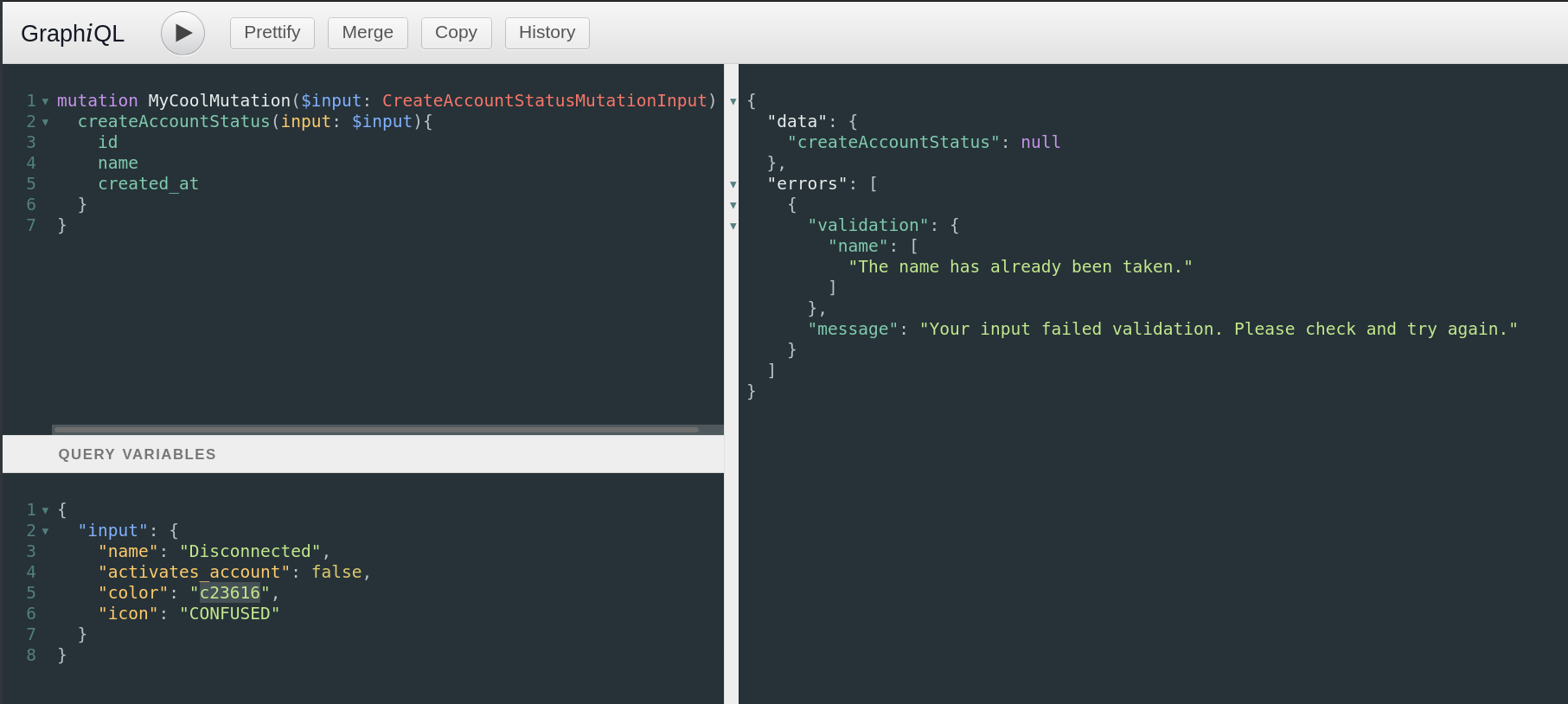

Uh oh — it failed this time. In a failure condition, the mutation name is returned with a null value, and we get a new errors property that describes what failed. In this case, I can see inside the validation property that my name was rejected because it’s already been used. Any field specific failures will always be inside validation, and any more general failures will be inside message. There’s one other type of error response we can get, that I’ll show you by submitting an invalid entry for my input variable — I’ll replace the activates_account value with a string instead of a boolean.

Image for post

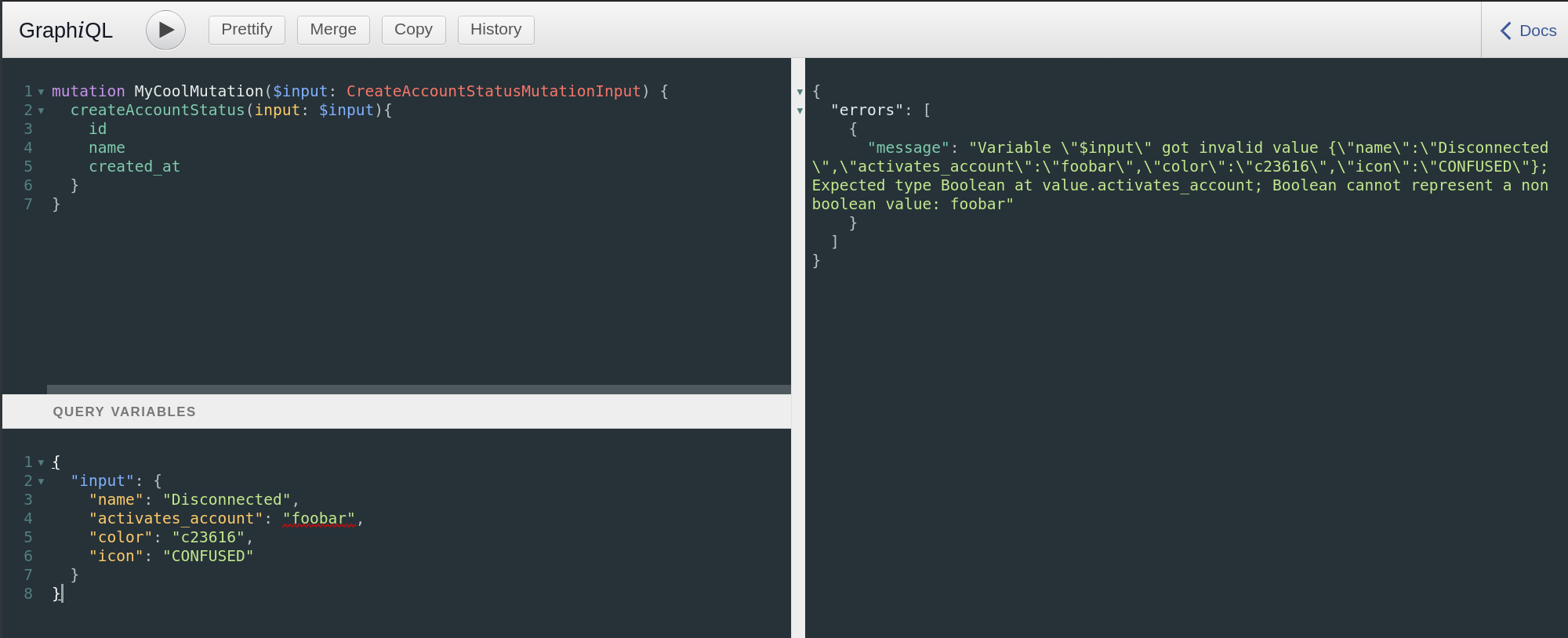

In this case, I get a slightly less user friendly error message. This is because I’ve failed to meet the basic criteria of the input — I’m sending a string instead of a boolean. This fails out at the GraphQL level itself — we haven’t adhered to the requirements of the object, so we get told what our failure is. As long as you always adhere to the documentation, you should never see this type of error — you’ll only get back errors from the application itself in a more user friendly format as shown when I tried to use a name that was already taken.


Congratulations! You’re now armed with enough knowledge to start using the Sonar API to build something great. Let me know what you build — I’m always interested to see what people are coming up with. If you’re a Sonar user, come join us on Facebook to chat with our Sonar users! Stay tuned for more articles shortly.
